Single Spring Seal

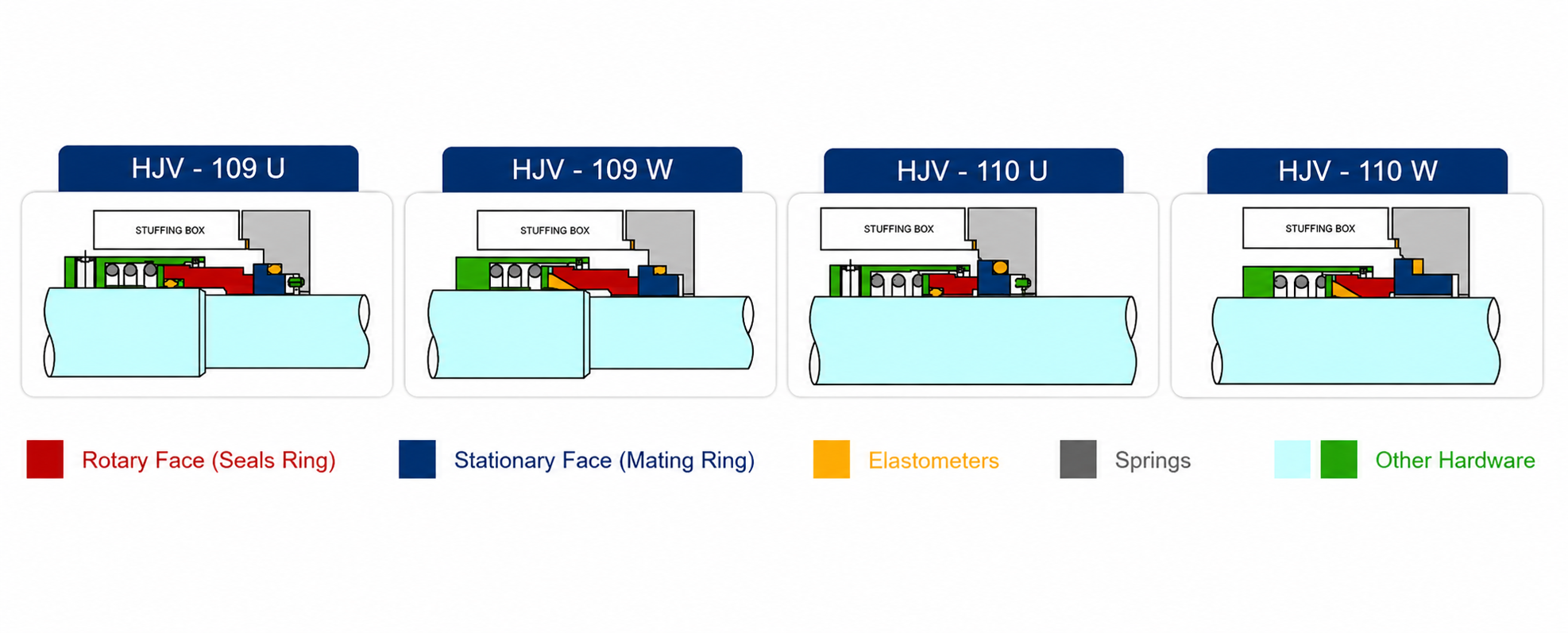

Seal Type- HJV-109U & HJV-109W | HJV-110U & HJV-110W
The Series HJV-109 &
HJV-110 are single Balance & Unbalance
internally mounted mechanical seal. This series of
mechanical seal are design for the dirty
media type applications. It is
Independent in the direction of rotation.
easy installation and removal all
component of the seal are held together
by snap ring.
All parts of the seal are interchangeable, one can convert
HJV-109 &
HJV-110 only by
changing it’s seal ring and it’s elastomer. This is ideal for stock
rationalization.
Product Features :
- Single Acting
- Independent of Direction of Rotation
- Balance & Unbalance
- Internally Mounted
Applications :
- Petrochemicals
- Petroleum Refinery
- General Chemical
Material of Constructions :
| Seal body | Seal Faces | HJV-109 | HJV-110 |
|---|---|---|---|
|
AISI 304, AISI 316,
Hastelloy-C, Alloy-20 |
Carbon, Silicon Carbide,
Ceramic (99.5%),
Tungsten Carbide |
Viton, EPDM, TTV, FEP,
Aflas, Kalrez |
PTFE, GFT, CFT |
Operating Limits :
| Pressure | Temperature | Shaft Dia |
|---|---|---|
|
Unbalance upto 08 Bar,
Balance upto 30 Bar |
-20°C to +200°C |
15mm to 100mm |
