Dry Seal

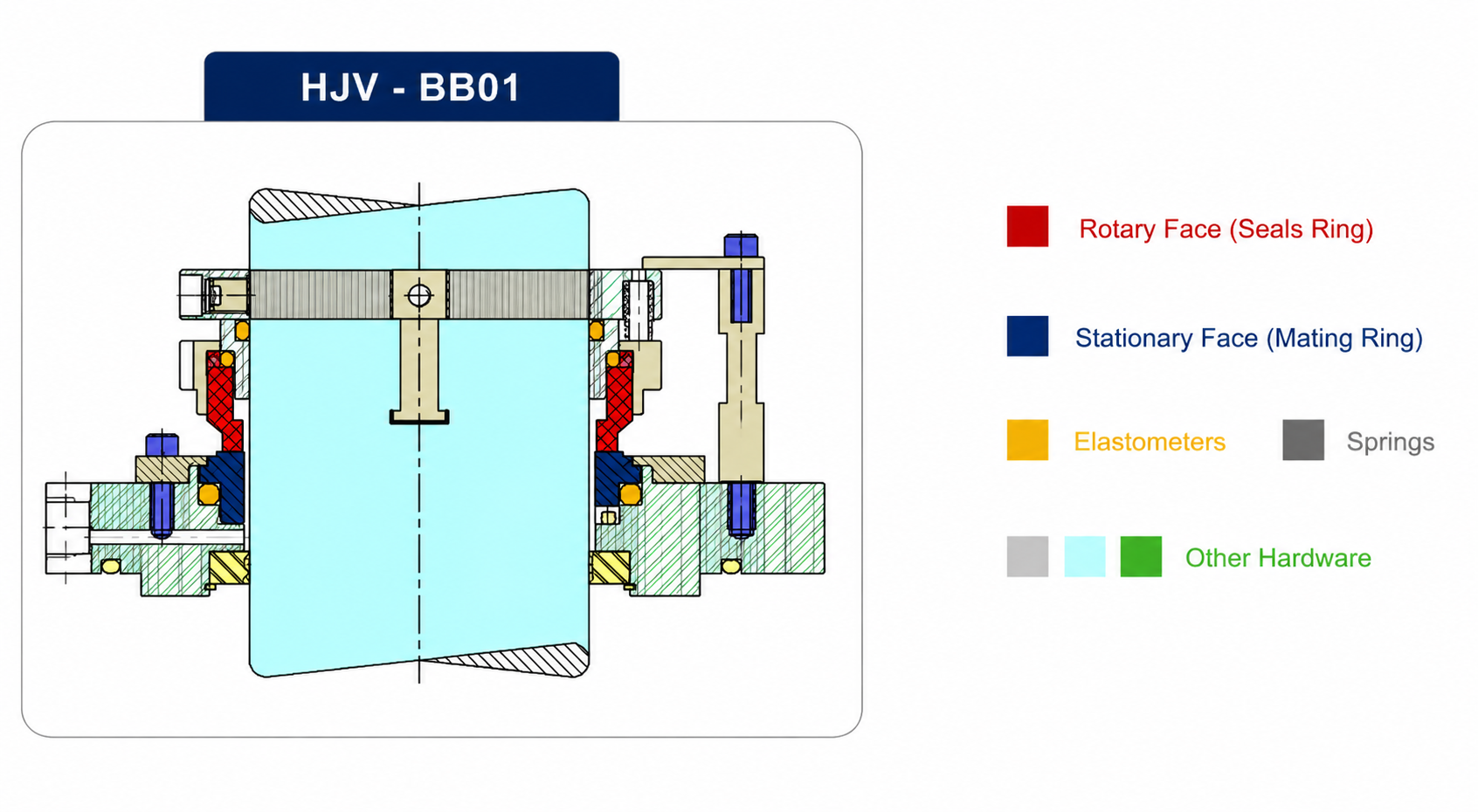

Seal Type- HJV-B801
Type HJV-B801 design are basically used as dry running seals
and can be used for corrosive services.The Advantage of these
Seals are that it does not require any lubricant or Quenching for
cooling.
These seals are use for mixers, agitators and reactors for
clean ability. These seals were developed for sanitary
applications where product contamination from barrier
fluids is unacceptable.Hence this Seals are used.
Product Features :
- SingleActing
- Independent of Direction of Rotation
- Easy to install
Applications :
- Corrosive Applications
- Pharma Reactors
- Petroleum Refinery
- General Chemicals
Material of Constructions :
| Seal body | Face Material | Elastomers |
|---|---|---|
|
AISI 304, AISI 316,
Hast’C’, Alloy-20
|
Carbon, Silicon Carbide,
Tungsten Carbide,
Ceramic (99.5%) |
Viton, Aflas, FEP
Kalrez,, TTV, PTFE, GFT |
Operating Limits :
| Pressure | Temperature | Shaft Dia |
|---|---|---|
|
upto 10 Bar |
upto 120°C |
20mm to 150mm |
