Cartridge Seals

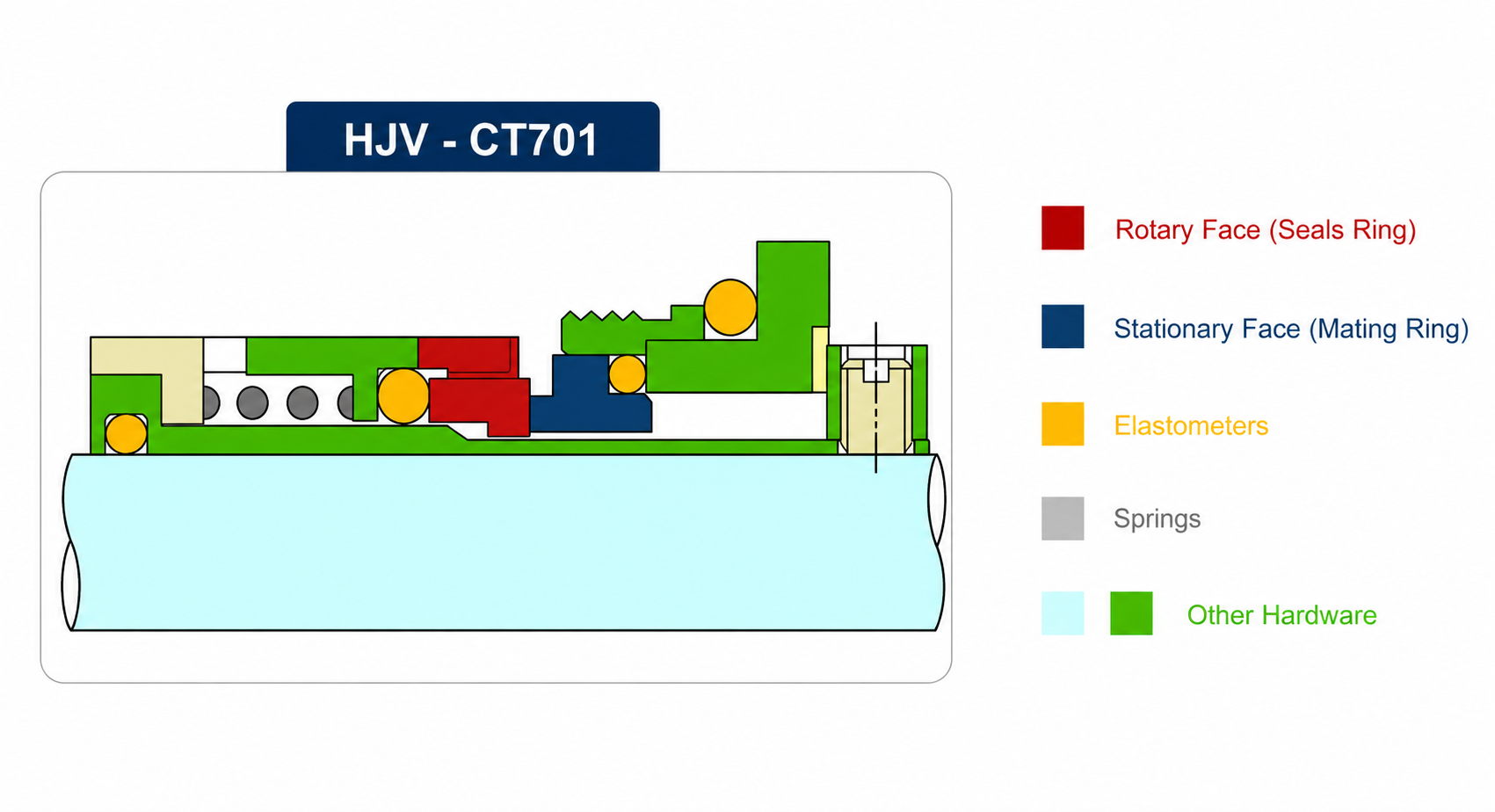

Seal Type- HJV CT-701, 702, 703
The HJV-CT-701, 702, 703 type is a simple-to-install, unitized cartridge
mounted mechanical seal which requires no measuring for
installation. The seal faces are protected from damage and
contamination from dirt and foreign particles and are
widely used in grundfos pump.
These types of Seals are desidned for pumps
handling slurries, syrups and other fluids that
solidify or polymerized with the change in
temperature.
Product Features :
- SingleActing
- Independent of Direction of Rotation
- Easy to install
- Cartridge Design
Applications :
- Slurry pumps
- Pulp & paper
- Petrochemicals, Refineries
- General Chemicals
Material of Constructions :
| Seal body | Face Material | Elastomers |
|---|---|---|
|
AISI 304, AISI 316 |
Carbon, Silicon Carbide,
Ceramic (99.5%),
Tungsten Carbide
|
Viton, EPDM, Nitrile,
Neuprene, Aflas, PTFE,
GFT
|
Operating Limits :
| Pressure | Temperature | Shaft Dia |
|---|---|---|
|
upto 05 Bar |
-20°C to +180°C |
12mm to 22mm |
