Agitator Seal

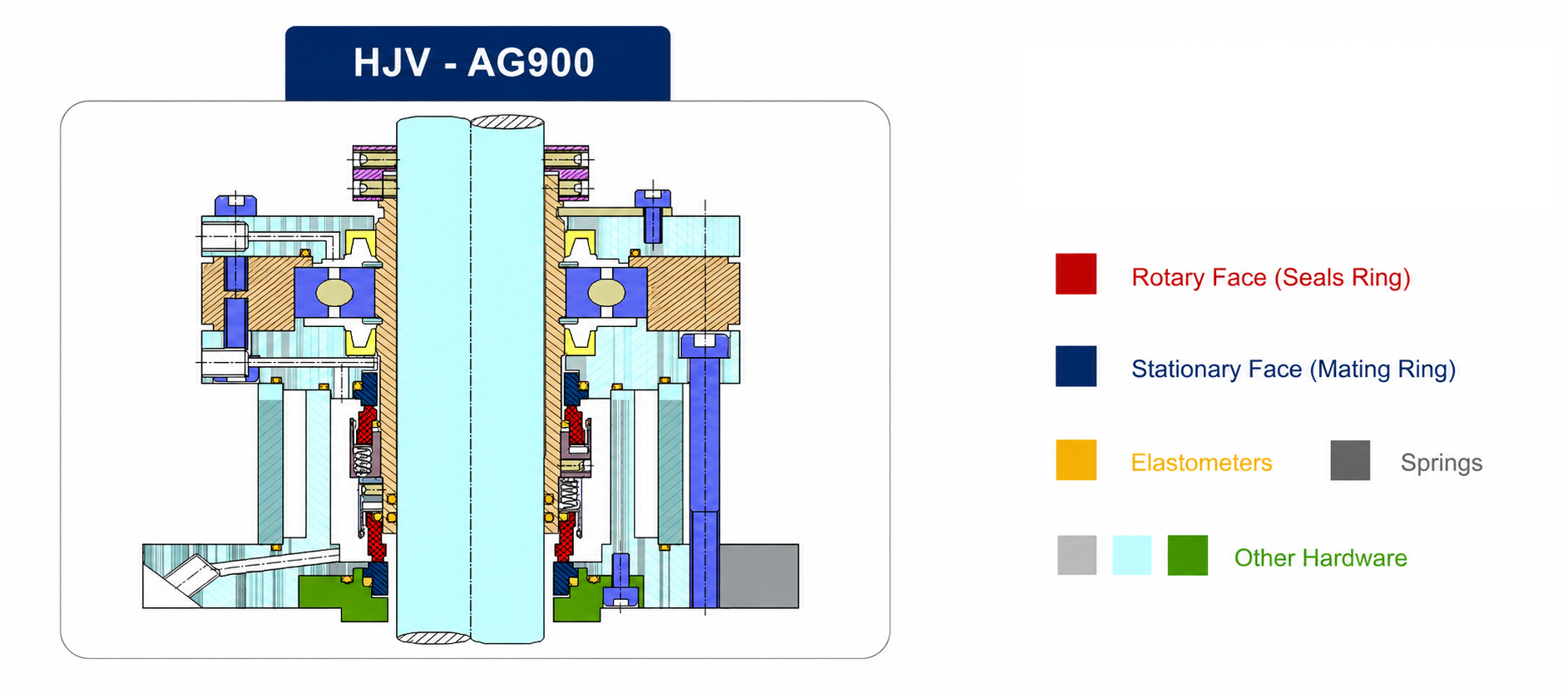

Seal Type- HJV-AG 900
The HJV-AG 900 Agitator seals are design for handling severe
services including products emitting highly toxic vapours
during Reaction process. Packed in one compact, unitized
cartridge assembly design which is easy for installation.
These Seals are independent in the Direction of Rotation
used in various type of Equipment like Agitator, Reactors,
Mixers & Glass line vessel. The Jacketed Cooling also helps
to maintain the cool environment around the seal. This seal
are also supported by the Thermosyfan system to maintain
the temperature & pressure inside the Seal Housing.
Product Features :
- Single Acting
- Independent of Direction of Rotation
- Easy to install
- Cartridge Design
Applications :
- Petrochemicals
- Light hydrocarbon
- General chemical etc.
Material of Constructions:
| Seal body | Face Material | Elastomers |
|---|---|---|
|
AISI 304, AISI 316,
Hast C’, Alloy-20
|
Carbon/Silicon Carbide/
Ceramic (99.5%),
Tungsten Carbide
|
Viton, Aflas, FEP, Kalrez,,
TTV, PTFE, GFT
|
Operating Limits:
| Pressure | Temperature | Shaft Dia |
|---|---|---|
|
Full Vacuum to 25 Bar |
60°C to 200°C |
30mm to 150mm |
