Rubber Bellow Seal

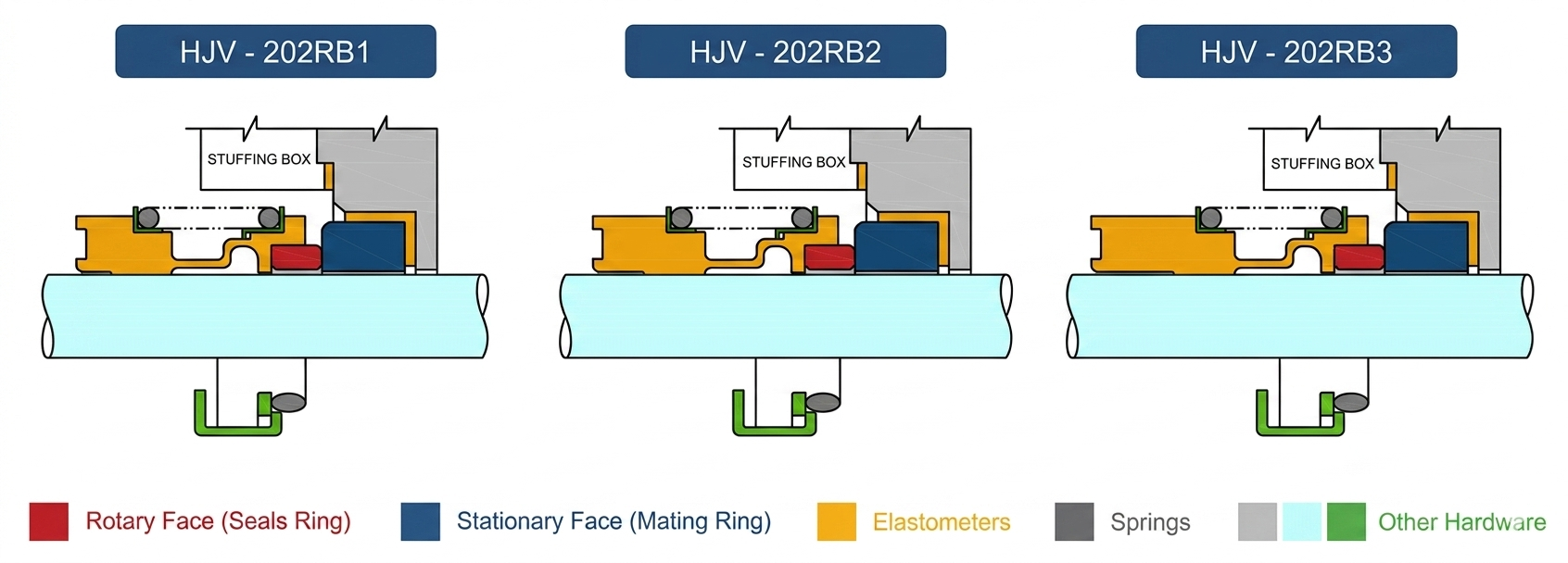

Seal Type- HJV-202RB
The Type HJV-202RB is single coil spring rubber bellow seal
used for water and oil containing slurries. Shaft run out is
compensated by rubber bellow and spring due to its self aligning
capability.
Elastomeric bellow protect Shaft/Sleeve from Fretting.
Due to single coil spring the seal will not clogged in
Effluent containing particles.
Product Features :
- Single Acting
- Unbalanced
- Independent of Direction of Rotation
- Internally Mounted
Applications :
- Water Pumps
- Submersible Pumps
- Sewage Pumps
Material of Constructions:
| Seal body | Seal Face | Elastomers |
|---|---|---|
|
AISI 304, AISI 316 |
Carbon, Silicon Carbide,
Ceramic
|
Viton, EPDM, Nitrile,
Neuprene |
Operating Limits:
| Pressure | Temperature | Shaft Dia |
|---|---|---|
|
upto 10 Bar |
-20°C to +160°C |
15mm to 100mm |
