Single Spring Seal

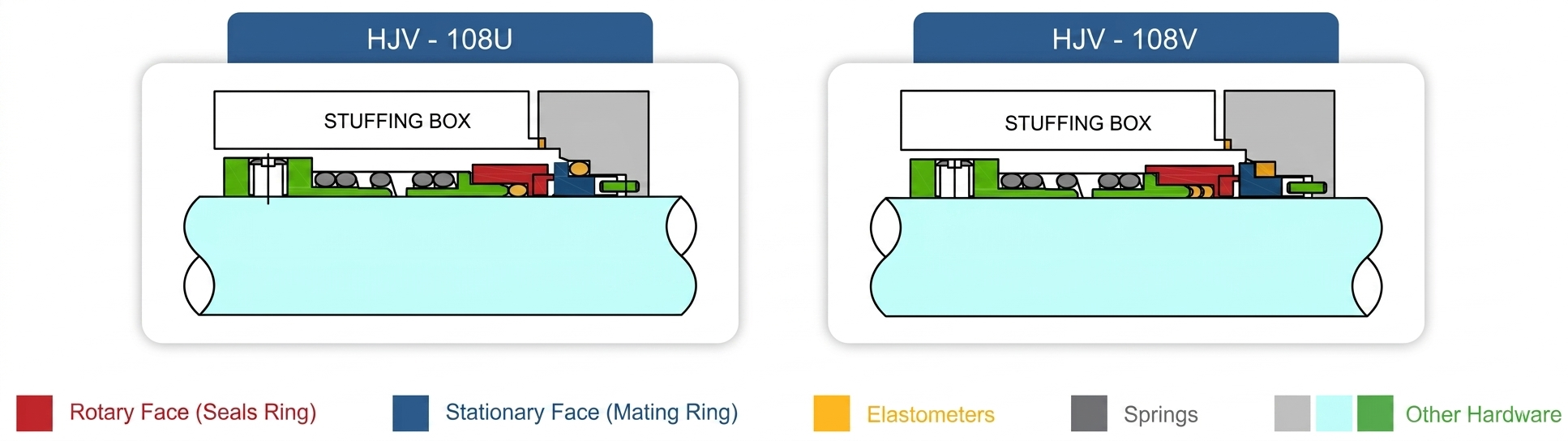

Seal Type- HJV-108U & HJV-108V
The Series HJV-108U &
HJV-108V is bidirectional single spring Unbalance
mechanical seal.This series of mechanical seal are design for the
dirty media type applications. It is Independent in the direction of
rotation. It is simple in construction and easy to instal.
Torque transmission for seal ring will be done through
its drive lug. All parts of the Seal are
Interchangeable, one can easily convert
HJV-108U to HJV-108V only by changing
it’s Elastomers.
Product Features :
- Single Acting
- Independent of Direction of Rotation
- Unbalanced
Applications :
- Crystallizing Slurry
- Dirty Water & Slurry
- Petroleum Refinery
Material of Constructions :
| Seal body | Seal Faces | HJV-108U | HJV-108V |
|---|---|---|---|
|
AISI 304, AISI 316,
Hastelloy-C, Alloy-20 |
Carbon, Silicon Carbide,
Ceramic (99.5%),
Tungsten Carbide |
Viton, EPDM, TTV, FEP,
Aflas, Kalrez |
PTFE, GFT, CFT |
Operating Limits :
| Pressure | Temperature | Shaft Dia |
|---|---|---|
|
upto 06 Bar |
-20°C to +200°C |
15mm to 100mm |
