Single Spring Seal

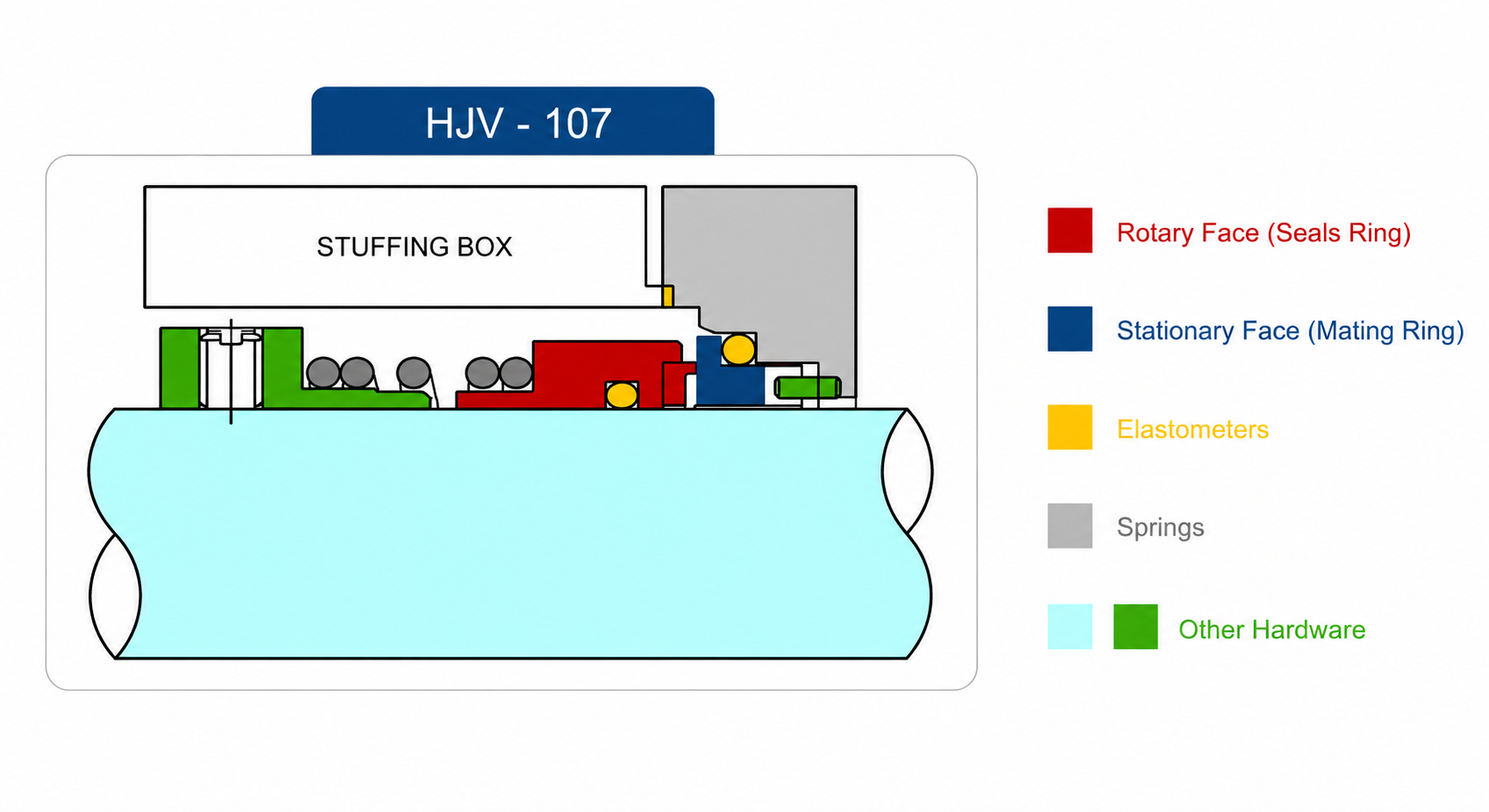

Seal Type- HJV-107
The Series HJV-107 is single coil Unbalance mechanical seal. It is
internally mounted mechanical seal and also easy to instal. It is
dependent in the direction of shaft rotation. Clockwise rotating
shaft required right handed spring & Anticlockwise rotating shaft
required left handed spring.
It is simple in construction. Rotary seal ring
is driven by the motion transmitted by
the shaft to the spring.
Product Features :
- Single Acting
- Independent of Direction of Rotation
- Unbalanced
- Internally Mounted
Applications :
- Dirty Water & Slurry
- Petroleum Refinery
- General Chemicals
Material of Constructions :
| Seal body | Seal Faces | Elastomer |
|---|---|---|
|
AISI 304, AISI 316,
Hastelloy-C, Alloy-20 |
Carbon, Silicon Carbide,
Ceramic (99.5%),
Tungsten Carbide |
Viton, EPDM, TTV, FEP.
PTFE, Aflas, Kalrez |
Operating Limits :
| Pressure | Temperature | Shaft Dia |
|---|---|---|
|
upto 06 Bar |
-20°C to +200°C |
15mm to 100mm |
