Rubber Bellow Seal

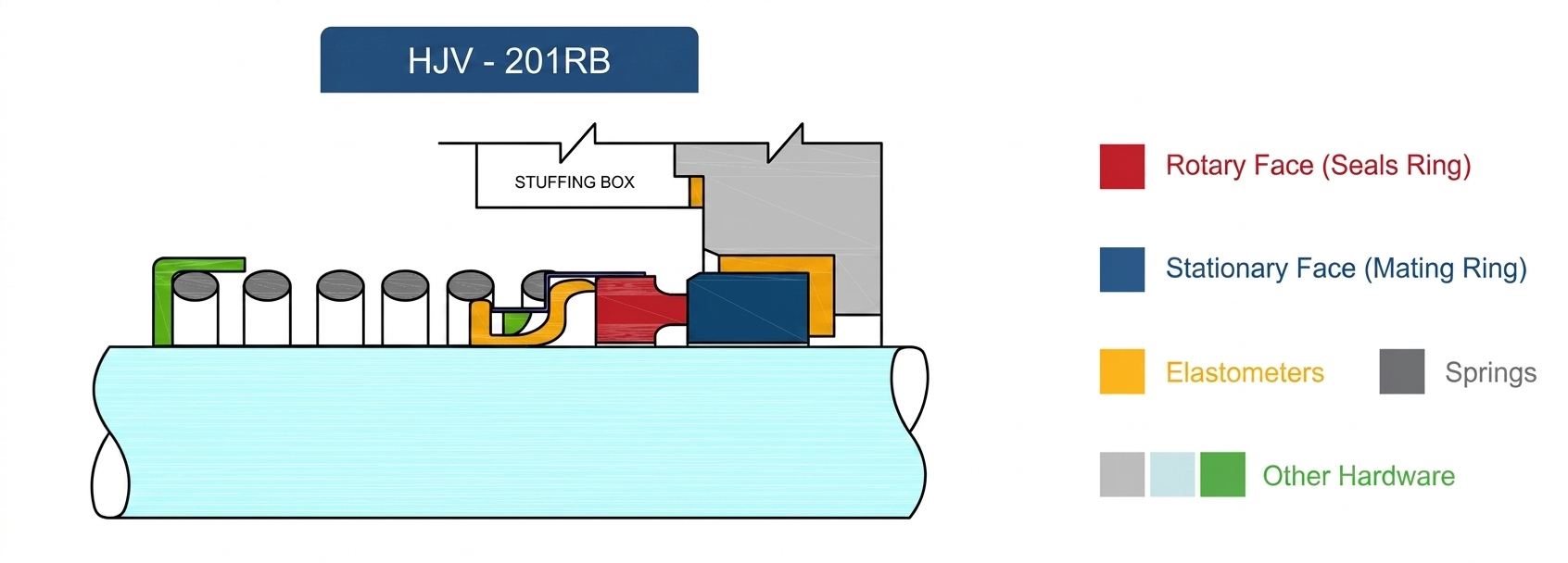

Seal Type- HJV-201RB
The Type HJV-201RB is single coil spring rubber bellow seal.
Most versatile and widely used in a variety of applications s it is
easy to install and economical. Shaft run out is
compensated by rubber bellow and spring due to its self
aligning capability.
The unique rubber bellow secondary seal provide a
high degree of axial flexibility to compensate for
misalignment. Elastomeric bellow protect Shaft/Sleeve
from fretting. Due to single coil spring the seal will not
clogged in Effluent containing particles.
Product Features :
- Single Acting
- Unbalanced
- Independent of Direction of Rotation
- Internally Mounted
Applications :
- Water Pumps
- Submersible Pumps
- Sewage Pumps
Material of Constructions:
| Seal body | Seal Face | Elastomers |
|---|---|---|
|
AISI 304, AISI 316 |
Carbon, Silicon Carbide,
Ceramic
|
Viton, EPDM, Nitrile,
Neuprene |
Operating Limits:
| Pressure | Temperature | Shaft Dia |
|---|---|---|
|
upto 10 Bar |
-20°C to +160°C |
20mm to 100mm |
